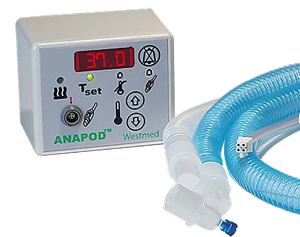

Active Heated Humidication System for Anesthesia

The ANAPOD system is a unique, self-contained approach, eliminating manual temperature balance and humidity control. It is an easy, safe and effective method to actively heat and humidify inspiratory gases during anesthesia to help maintain thermoregulation and minimize post-anesthesia respiratory complications. Supplemental airway heat and humidity during anesthesia aids in the prevention of intraoperative hypothermia and can be used on virtually every intubated patient, even when other means of heating such as blankets or wraps are not feasible. Plus, active airway humidification helps to counteract the deleterious effects of dry, irritating anesthetic agents on the respiratory tract, thereby mitigating respiratory complications of anesthesia.

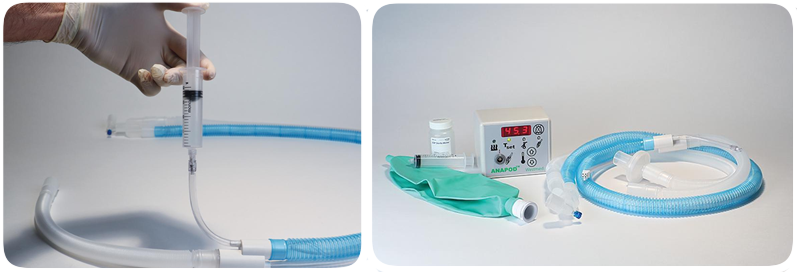

The innovation behind the ANAPOD Heated Humidification System for Anesthesia is its proprietary self-contained water reservoir: in the tubing! A unique cellulose fiber wick and an extra low-energy heating wire runs the length of the inspiratory limb of the anesthesia circuit.

Specifications

Maximum Temperature45° C
Minimum Flowrate0.5 L/min
Maximum Continuous Flowrate12 L/min
Maximum Minute Volume12 L/min
Inspiratory Flow Resistance0 to 0.06 cmH2O / L/Min (at maximum flow rate)
Circuit Moisture Output65mg H20 / L/Min (@ 45°) C

A Self-Contained Approach

Active heated molecular high humidity can be accomplished during general anesthesia without the expensive and bulky heated humidifier and water bag systems that are more properly suited for long-term mechanical ventilators. SpectraMed distributes ANAPOD products.
